Underwater Camera

Under Water Bullet Camera with IR led.SX

Model:FNKZ-IC.SX

weight:15KG

Colour:primary color of stainless steel/paint colors
Online order

Main features:

·CNEx certificated

·Stainless steel 304/316L

·Surface finish: electropolished or corrosion resistant paint finish

·IP68

·2 cable glands

·1/2.8" Progressive Scan CMOS

·1920(H)*1080(V)@60fps

·H.265,H.265+

·Applicable for under water or sea.

·Optional accessories: auto-heating, auto-cooling modular.

General Specification
Model	FNKZ-IC.SX
Camera	Analog(SD/AHD/HD-SDI), Digital(IP network)
Explosion levels	Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃ IP68（CNEX) II 2 G Ex db IC T6 Gb/II 2 D Ex tb IIIC T80℃ Db(ATEX)
Waterproof	IP68
Input Voltage	220VAC±10%/AC12V/POE
Voltage	DC12V/AC220V/PoE(802.3af)(Class 0)
Current	≤15000mA
Power Consumption	≤25W
Operation Temperature	-20℃～+60℃
Operation Humidity	≤90%RH

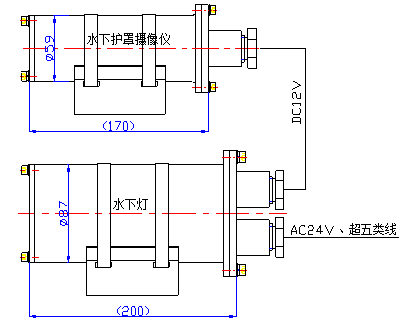

Dimension	270mm(L)×170mm(W)×140mm(H)
Window	Borosilicate, both side nano coating
Weight	15kg
Working depth	＜50m
Winder defroster	Optional
infrared	white
Packing	Carton box with EPE inside
