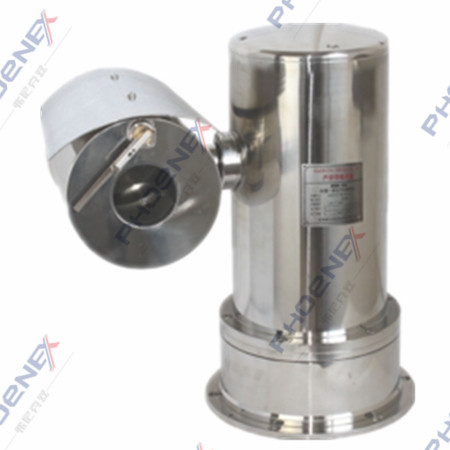

Explosion proof PTZ Camera

Ex-proof PTZ Camera.DY

Model:FNKZ-PTZ.DY

weight:27Kg

Colour:primary color of stainless steel/paint colors
Online order

Product overview
UNV
dahua
others

Main features:

·CNEx certificated

·Stainless steel 304/316L

·IP68

·1 cable gland

·1/2.8" Progressive Scan CMOS

·1920(H)*1080(V)@60fps

·H.265,H.265+

·Intelligent variable speed function, PTZ speed automatic adjustment with the depth of field;
·Built-in power converter,no need for additional ex proof power supply box, the real integrative equipment, easy to install and cost savings;
·Built-in OSD menu, friendly interface and easy to operate；
·CVT,Continuously 360° horizontal rotation and vertical ±90°auto-flip；
·Optional accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.

Specifications
Model	FNKZ-PTZ.DY
Explosion level	ExdⅡCT6 Gb/Ex tD A21 IP68 T80℃
Input Voltage	AC220V±10%
Protection level	IP68 Standard, Surge Protection and Voltage Transient Protection
Material	Stainless steel 304/316L
Working Temperature/Humidity	-40℃～+60℃, ≤90%RH
Pan Range	360° continuous
Tilt Range	-90°~+90°
Pan speed	Configurable, from 0.1°/S~45°/S
Tilt speed	Configurable, from 0.1°/S~450/S
Number of Preset	256
Power-off Memory	Support
Park Action	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan//Frame Scan/Panorama Scan
PTZ Position Display	ON/OFF
Power Supply	220VAC
Power Consumption	Max:50w

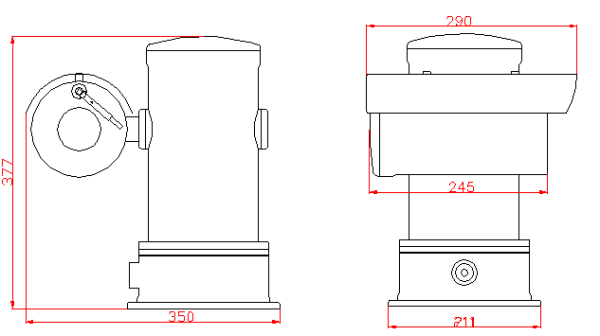

Dimension	350mm(L)×290mm(W)×377.5mm(H)
Weight	27kg
Packing	Carton box with EPE inside（605mm500mm305mm）
