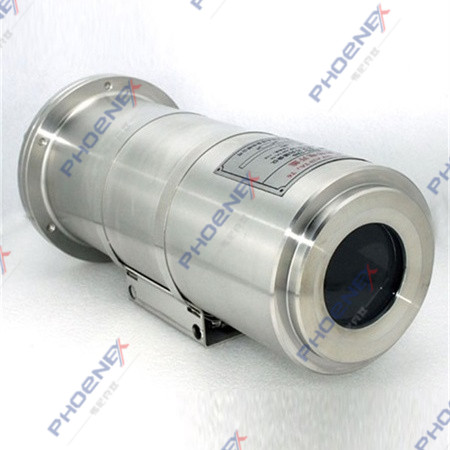

Explosion Proof Bullet Camera

Ex-proof Bullet Camera.500

Model:FNKZ-IC.500

weight:7KG

Colour:primary color of stainless steel/paint colors
Online order

Main features:

·CNEx certificated

·Stainless steel 304/316L

·Surface finish: electropolished or corrosion resistant paint finish

·IP68

·1 cable gland

·1/2.8" Progressive Scan CMOS

·1920(H)*1080(V)@60fps

·H.265,H.265+

·Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.

·Optional accessories: lens decoder, auto-heating, auto-cooling modular.

Specification
Model	FNKZ-IC.500
Explosion levels	Ex d ⅡC T6 Gb/Ex tD A21 IP68 T80℃ IP68
Waterproof	IP68
Input Voltage	220VAC±10%
Voltage	DC12V/AC220V/PoE(802.3af)(Class 0)
Current	≤1A
Power Consumption	≤8W
Installation	Outdoor
Operation Temperature	-20℃～+60℃
Operation Humidity	≤90%RH
Dimension	350mm(L)×120mm(W)×150mm(H)
Day& Night:	IR cut filter with auto switch
Weight	7kg
Window	Two-sized coating tempered glass
Packing	Carton box with EPE inside
Packing size	450mm(L)×190mm(W)×190mm(H)

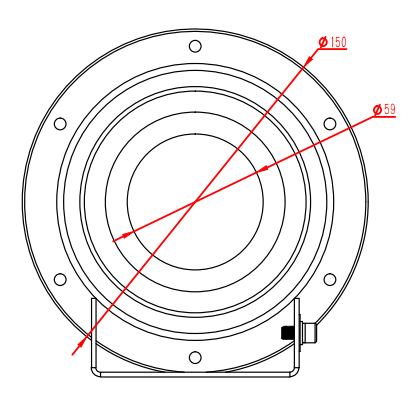

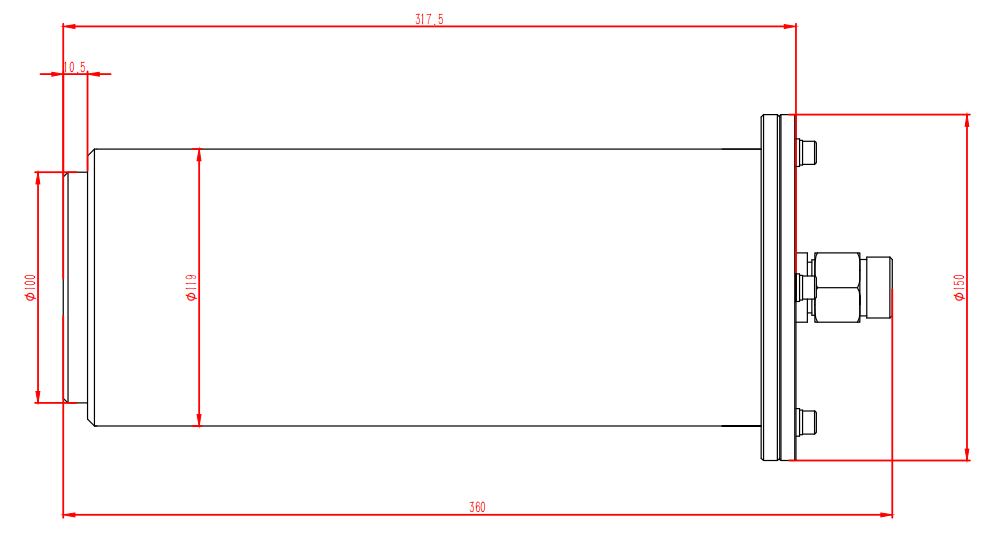

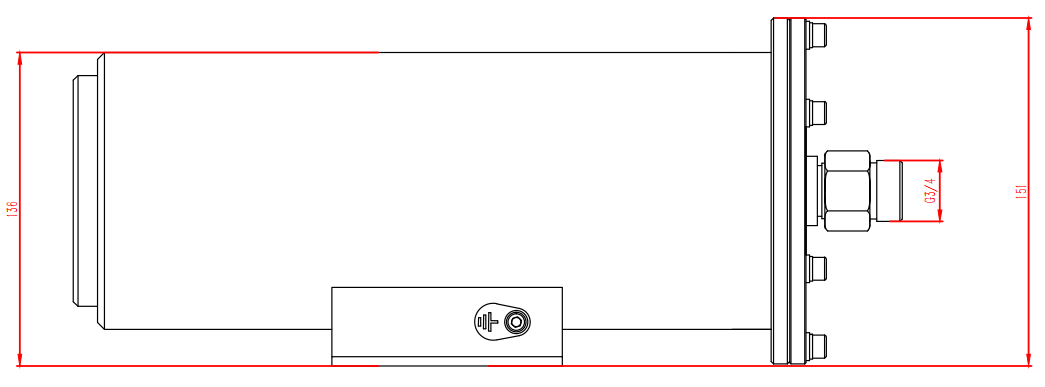

Dimension

UNV-2MP 20X	Ex-proof Bullet Camera.500（UNV 2MP20×).pdf
UNV-2MP 30X	Ex-proof Bullet Camera.500（UNV 2MP30×).pdf

Dahua-2MP 23X	Ex-proof Bullet Camera.500（Dahua 2MP23×).pdf
Dahua-2MP 30X	Ex-proof Bullet Camera.500（Dahua 2MP30×).pdf
Dahua-4MP 30X	Ex-proof Bullet Camera.500（Dahua 4MP30×).pdf
